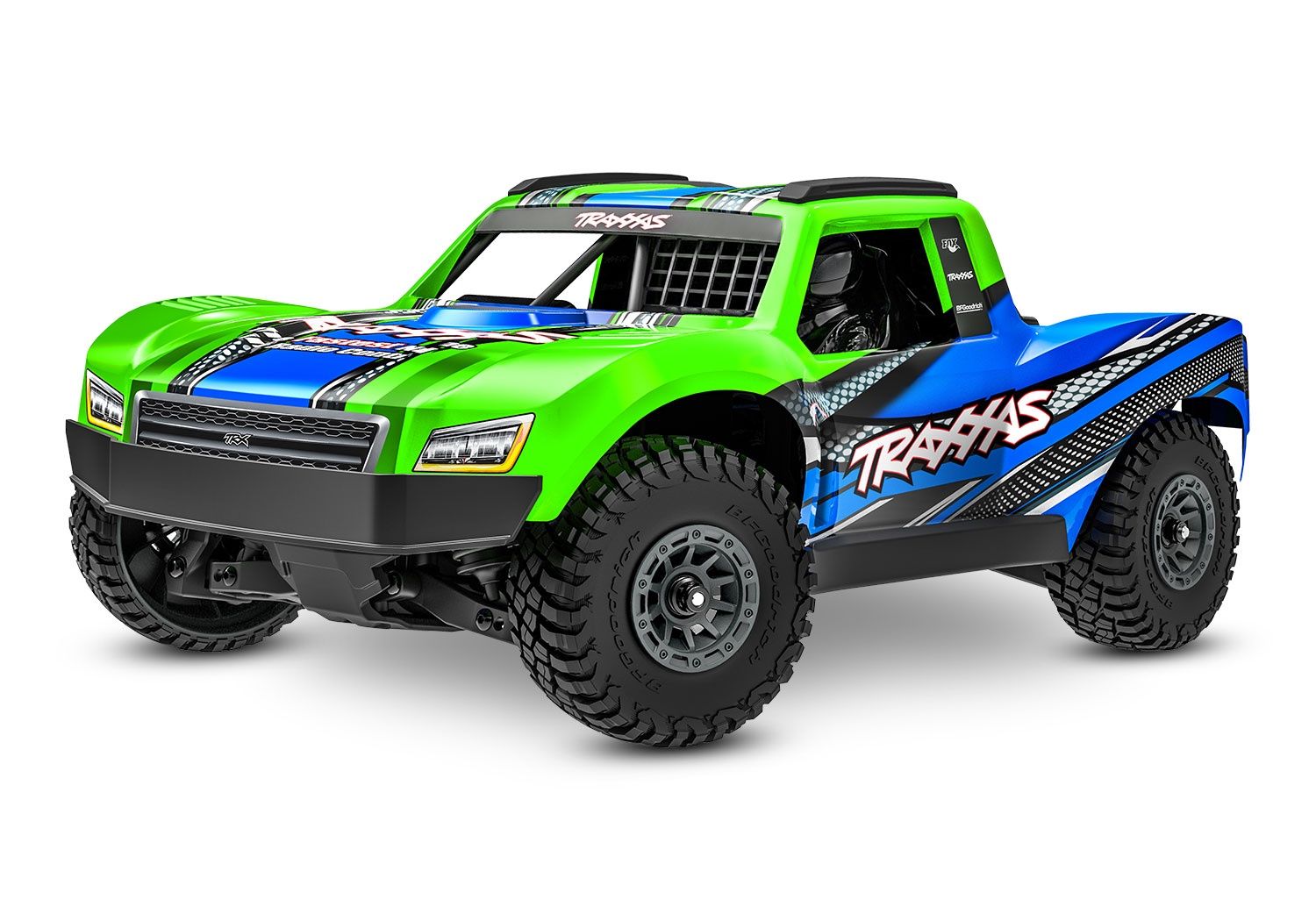

Traxxas Mini Slash 4X4
| Model Name: | Mini Slash 4X4 |
|---|---|
| Model Type: | Short course truck |
| Top Speed: | 30+ |
| Skill Level: | 1 |
| Scale: | Mini |
| Length: | 16.06 inches (408 mm) |
| Width: | 8.46 inches (215 mm) |
| Height: | 5.63 inches (143 mm) |
| Weight: | 3.62 pounds (1.64 kg) |
| Track: | 7.28 inches (185 mm) |
| Wheelbase: | 9.25 inches (235 mm) |
|---|---|
| Ground Clearance: | 1.06 inches (27 mm) |
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Direct drive |
| Differential Type: | Planetary, steel gear |
| Gear Pitch: | 32 |
| Servo: | 2056 |
| Radio System: | TQ 2.4 GHz (2-channel) |
| Battery Compartment Specs: | 113 mm L x 41 mm W x 22 mm H |
| Motor Name: | BL-2s 3300 Kv |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 7.51 ounces (213 g) |
| Motor Length: | 3.15 inches (80 mm) |
| Motor Diameter: | 1.42 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Traxxas Quick Connect Motor Plug |
| ESC Name: | BL-2s Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| ESC Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6 volts |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
| Battery Connector: | Traxxas High-Current Connector |
