HRASJT254, Hot Racing 32P Steel Spur Gear for Traxxas Slash 4x4/Stampede 4x4 (Silver) (54T)

Hot Racing 32P Steel Spur Gear for Traxxas Slash 4x4/Stampede 4x4 (Silver) (54T)

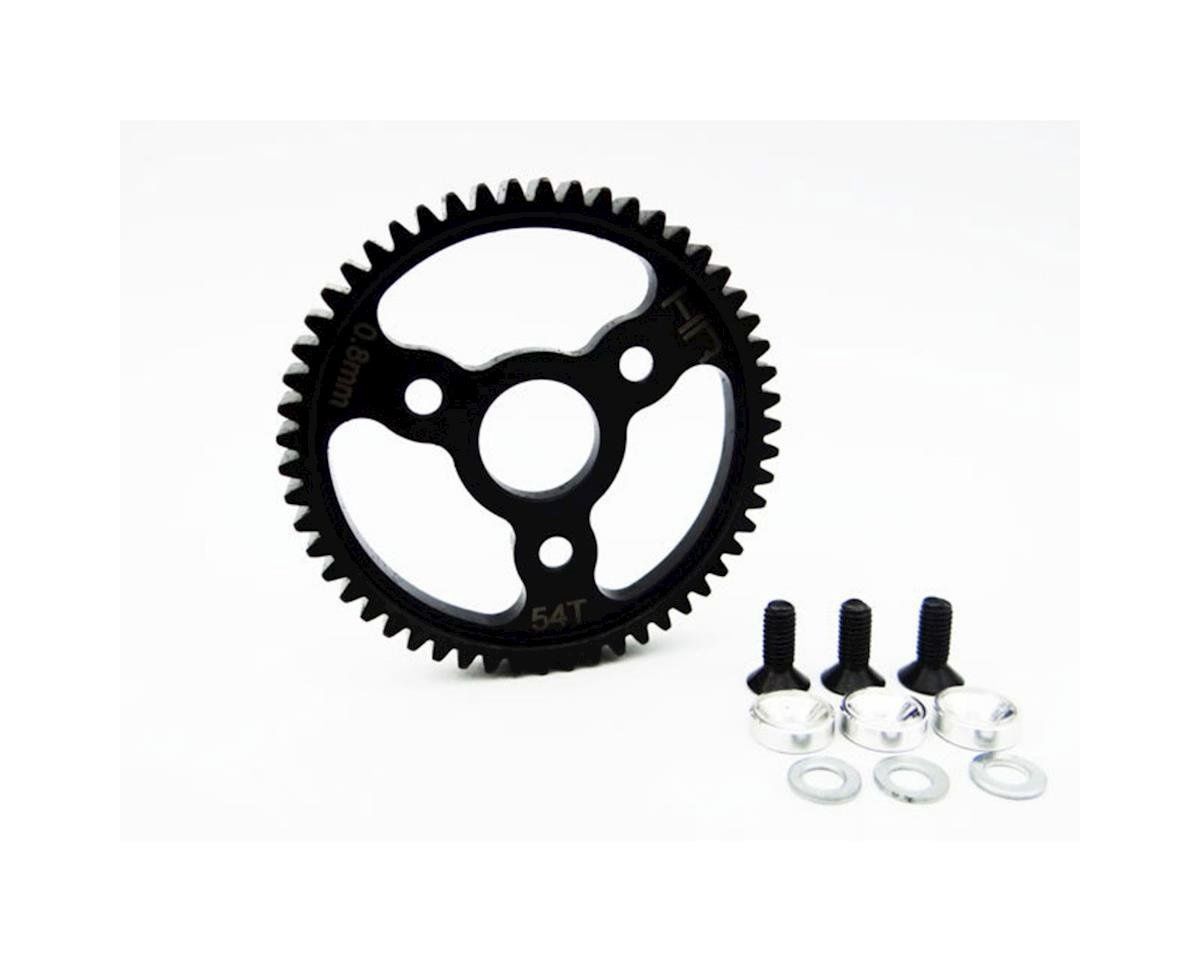

This is the Hot Racing Steel 32 Pitch, 54 Tooth Spur Gear with Silver hardware for the 1/10 Traxxas E-Revo, Jato 3.3, T-Maxx 3.3, T-Maxx 2.5R, Summit, Rally VXL, Slash 4X4, and Stampede 4X4.

Features:

• CNC machined and lightened hardened steel construction
• Black oxide coating for durability and corrosion resistance
• Silver-colored countersunk washers

Specifications:

• Number of Teeth: 54
• Gear Pitch: 32 pitch (0.8 module)
• Mounting Holes: 3
• Tooth Face width: 6mm (0.24 inch)
• Internal diameter: ~11mm (~0.43 inch)

Includes:

• 54 tooth 32 pitch spur gear
• (3) mounting screws
• (3) silver-colored countersunk washers
• (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)

Requires:

• Hardened clutch bell or pinon gear
• Requires a slipper transmission. Will NOT work with vehicle equipped with a center gear differential. Use Hot Racing SSLF2 series gears for vehicles equipped with a center gear differential.

This product was added to our catalog on February 13, 2025
