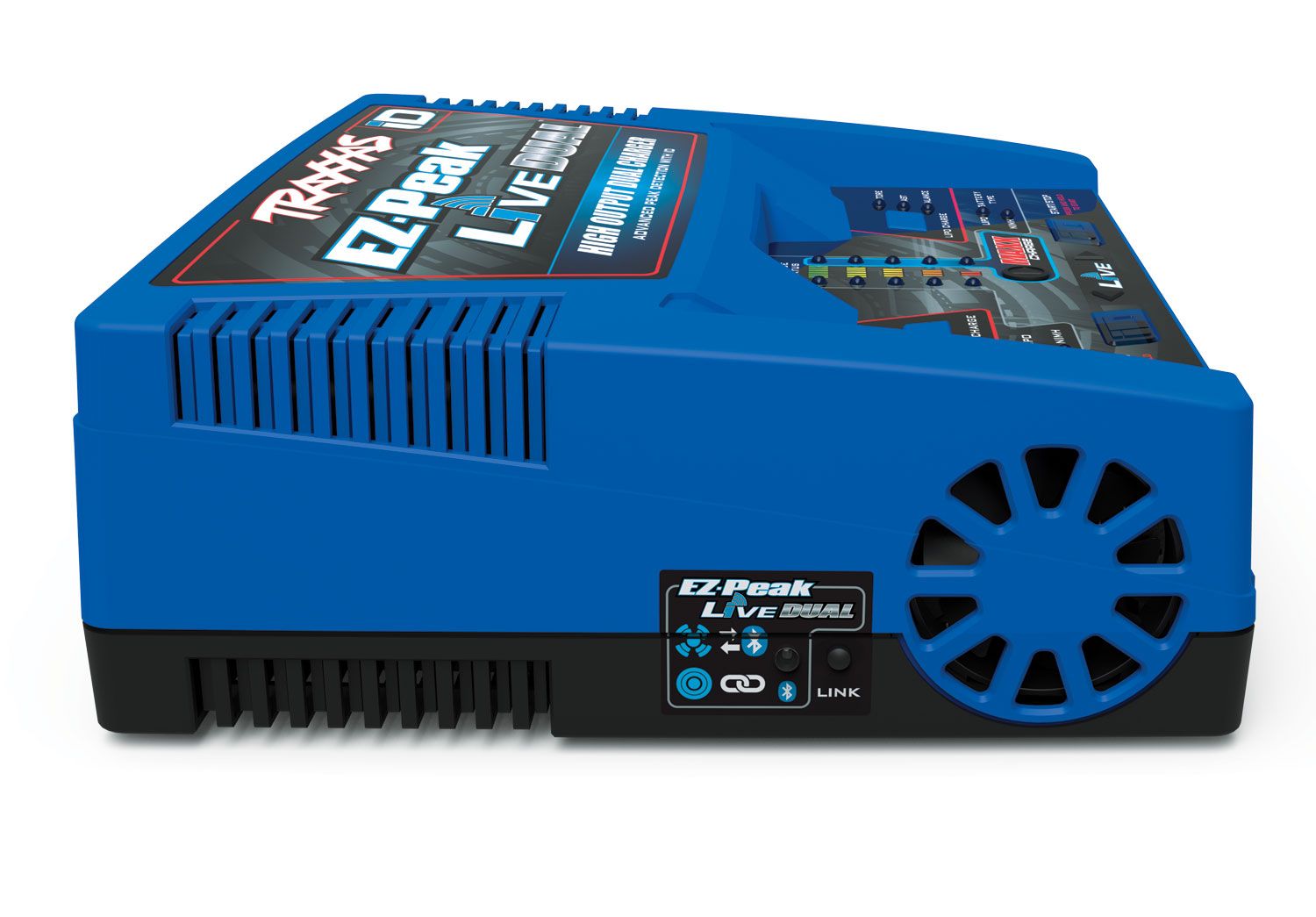

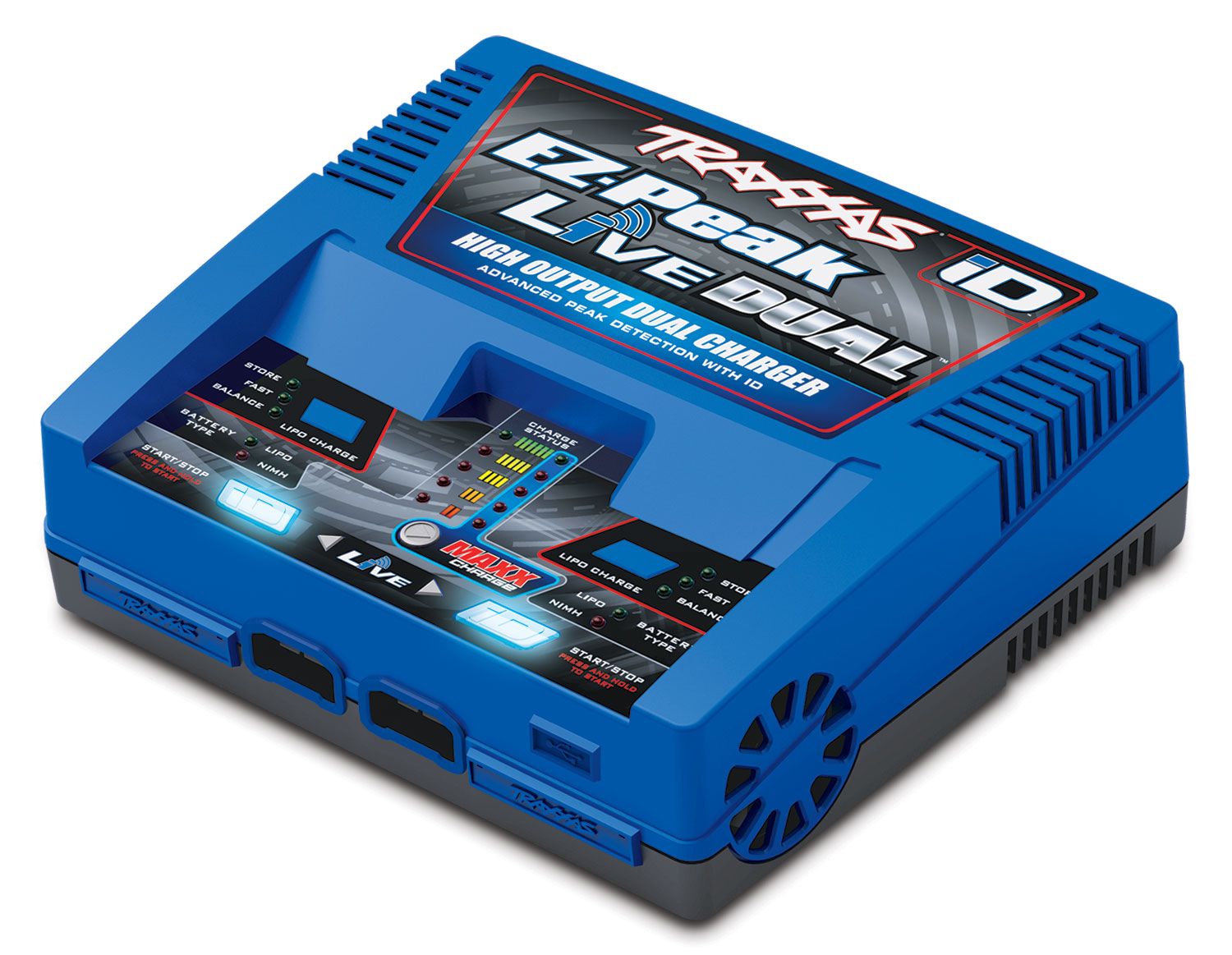

TRA2973, Traxxas EZ-Peak Live Multi-Chemistry Battery Charger w/Auto iD (4S/26A/200W)

TRA2973, Traxxas EZ-Peak Live Multi-Chemistry Battery Charger w/Auto iD (4S/26A/200W)

The EZ-Peak Live Dual iD Charger takes all the advanced features of the EZ-Peak Live and supercharges the power output to over 26 amps (200 watts)! The 4s capable multi-chemistry dual charger uses built-in Bluetooth to work seamlessly with the Traxxas EZ-Peak Live app for iOS and Android!

The EZ-Peak Live app gives you detailed information, remote monitoring, and advanced operating functions through the high-definition color interface on your mobile device. It’s the most powerful, most advanced charger in the popular EZ-Peak lineup. Get back in the action sooner with the new EZ-Peak Live Dual Charger!

Patent Pending iD Technology

Just plug in a Traxxas iD-equipped battery and press start - that’s all there is to it! The iD system detects which Traxxas iD-equipped battery you are using and automatically configures the settings for the optimal charge. The progress bar and audible alerts keep you informed while the advanced high-resolution peak detection delivers a perfect charge every time. The EZ-Peak Live’s Storage Mode protects your LiPo battery investment by safely preparing the batteries for extended storage.

MAXX Power

The MAXX Charge feature takes full advantage of LiPo batteries’ high charge rates. Press the MAXX Charge button and the right side charges at the maximum charge rate the battery will allow (up to 16 amps). The left side receives the remaining power until the right side finishes and then the left side switches to MAXX power mode. This innovative design gets one battery ready in nearly half the time so you’re back in the action having fun.

Charging Flexibility

The charger automatically detects the type and size of your iD-equipped battery and configures the settings for the fastest charge possible. With 200 watts of power on tap, EZ-Peak Dual maximizes its charging potential for NiMH and LiPo batteries. Two high-flow fans keep the temperature down for extended charging sessions. Dual balance ports provide backwards compatibility for batteries with external balance leads. There’s even a special 2-amp USB output to charge your mobile device.

Technology

The free EZ-Peak Live App installs on your Apple® iPhone®, iPad®, iPod® touch, or Android™ device and links to your charger via built-in Bluetooth®. The EZ-Peak Live App gives you access to additional features, such as a high-definition graphical user interface, firmware upgrades, remote monitoring and alerts for up to 4 chargers, detailed live charging information, and the ability to turn off iD mode. iD mode may be switched off through the EZ-Peak Live Application for charging first-generation Traxxas batteries with non-iD High-Current Connectors.

Features:

• 200 Watt 26+ amp output
• Recognizes iD-equipped batteries to optimize charger settings
• MAXX Charge feature gets you back in the action quickly
• Optimized for faster LiPo balance charging
• One button LiPo storage charge protects your battery investment
• Advanced high-resolution peak detection delivers a perfect charge
• Easy to use interface with dual LED charge progress indicators
• Supports Traxxas EZ-Peak Live Application
• Audible alerts
• Dual high-flow cooling fans
• Advanced Mode for full manual control through EZ-Peak Live App
• Legacy support for all Traxxas High-Current Connectors
• Integrated dual balance ports for conventional LiPo batteries
• Built-in 2-amp USB charger output port
• Charges Dual 5-8-cell NiMH batteries
• Charges Dual 2s, 3s, and 4s LiPo Batteries

Specifications:

• AC Input: 100-240V, 50-60Hz, 2.35A
• Charge Current Range: 1.0—26.0A+
• Discharge Current Range: 750mAh
• Current Drain for Balance Ports: 750mAh
• NiMH Battery Cell Count: 5-8 Cells
• LiPo Cell Count: 2-4 Cells
• Dimensions: 204 x 174 x 68mm

Important Customer Note: Accessing some charger features requires a mobile device with Bluetooth capability (sold separately) and the Traxxas EZ-Peak Live Application.
