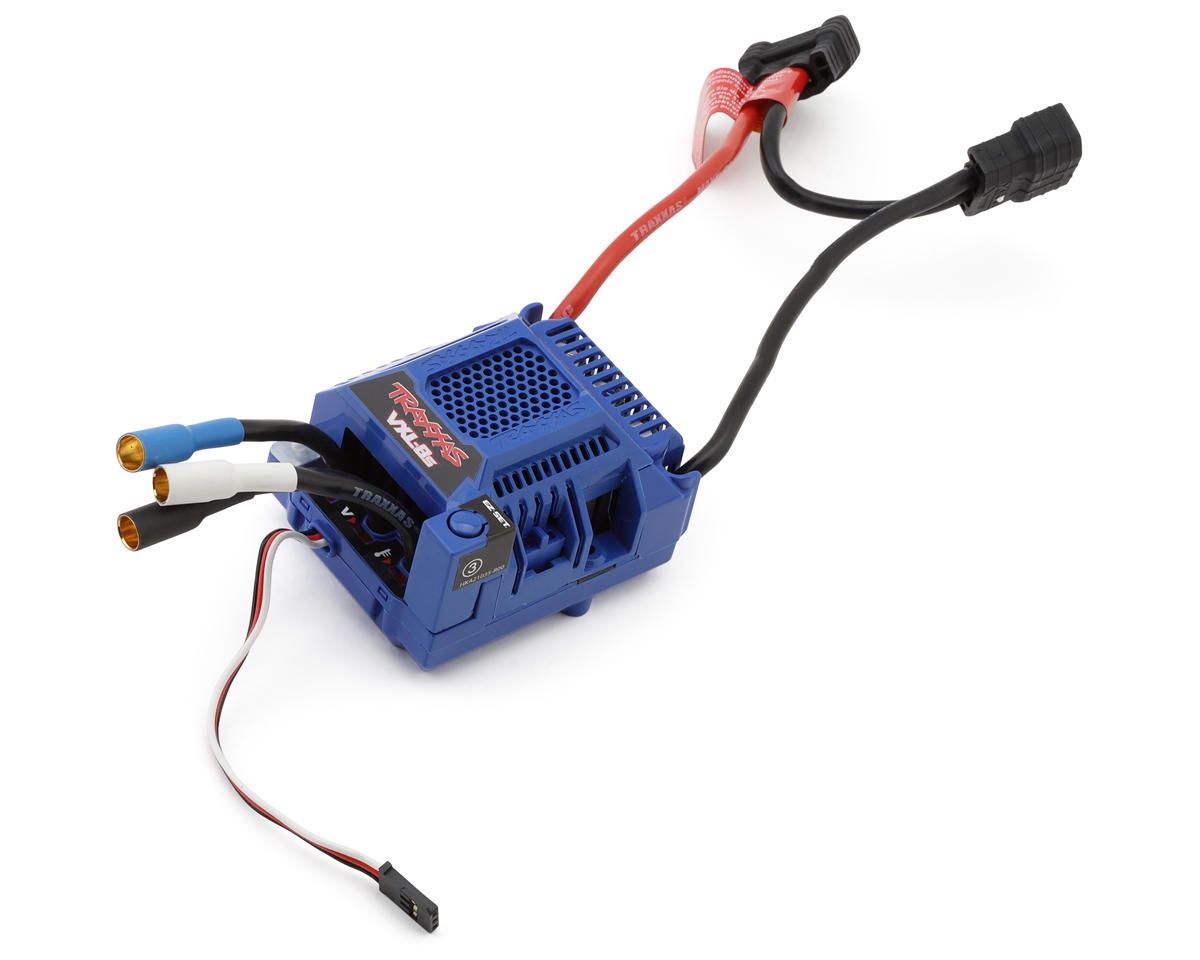

TRA3496, Traxxas X-Maxx Velineon VXL-8s Waterproof ESC

TRA3496, Traxxas X-Maxx Velineon VXL-8s Waterproof ESC

This is the Traxxas X-Maxx Velineon VXL-8s Waterproof ESC. The Velineon VXL-8s forward/reverse electronic speed control simplifies brushless technology with easy, built-in profiles and intuitive programming. The VXL-8s uses advanced circuit design that allows sensorless brushless motors to operate with the smoothness and precision of the best brushless systems. The VXL-8s comes with the peace-of-mind of the Traxxas Lifetime Electronics Warranty and unmatched Traxxas customer support.

The VXL-8s is not a toy. It is a sophisticated electronic device capable of delivering large amounts of current. Children under 14 years of age require adult supervision for use of the VXL-8s.

Real-Time Telemetry
The VXL-8s now supports real-time telemetry capability using the optional 6511 Wireless Module (sold separately) installed in a Traxxas TQi transmitter. Use the free Traxxas Link App to download the telemetry update to the ESC. Receive speed, RPM, voltage and ESC temperature telemetry directly on your mobile device while you drive and best of all, no additional sensors are required. The Traxxas Link App makes it easy to update your VXL-8s with the newest features.

Specifications:

• Input voltage: 4S/6S/8S LiPo (max. 33.6 volts)
• Supported motors: Sensorless brushless
• Battery connectors: Traxxas High-Current Connector
• Motor connectors: TRX 6.5mm bullet connectors
• Motor/battery wiring: 10-gauge Maxx® Cable
• Thermal protection: 2-stage thermal shutdown
• Case size (l/w/h): 58mm (2.28”)/ 72mm (2.83”)/ 46mm (1.81”)
• Weight: 182g (6.42oz)

This product was added to our catalog on April 12, 2025
